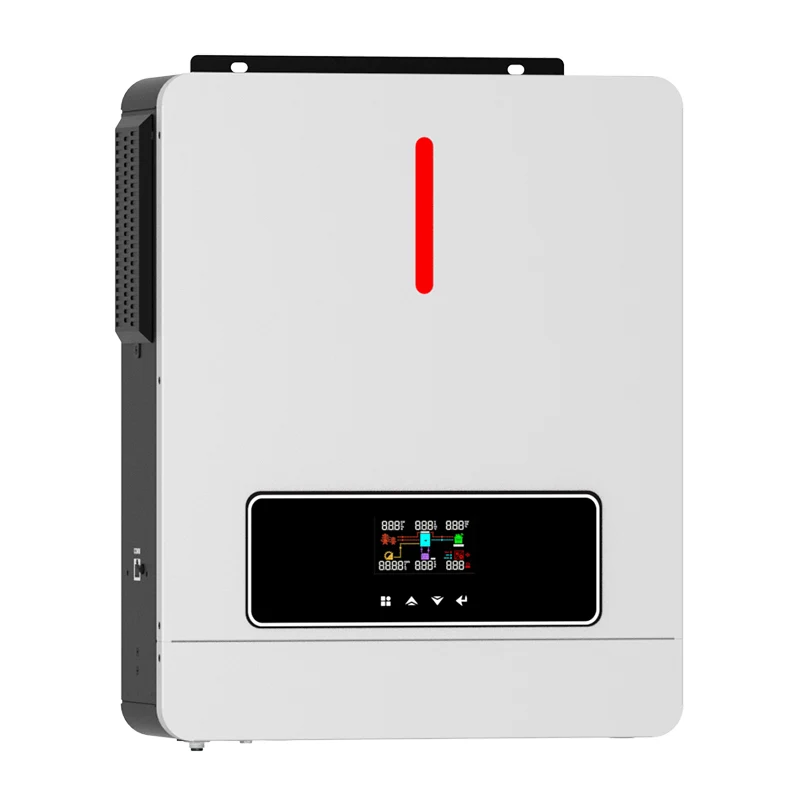

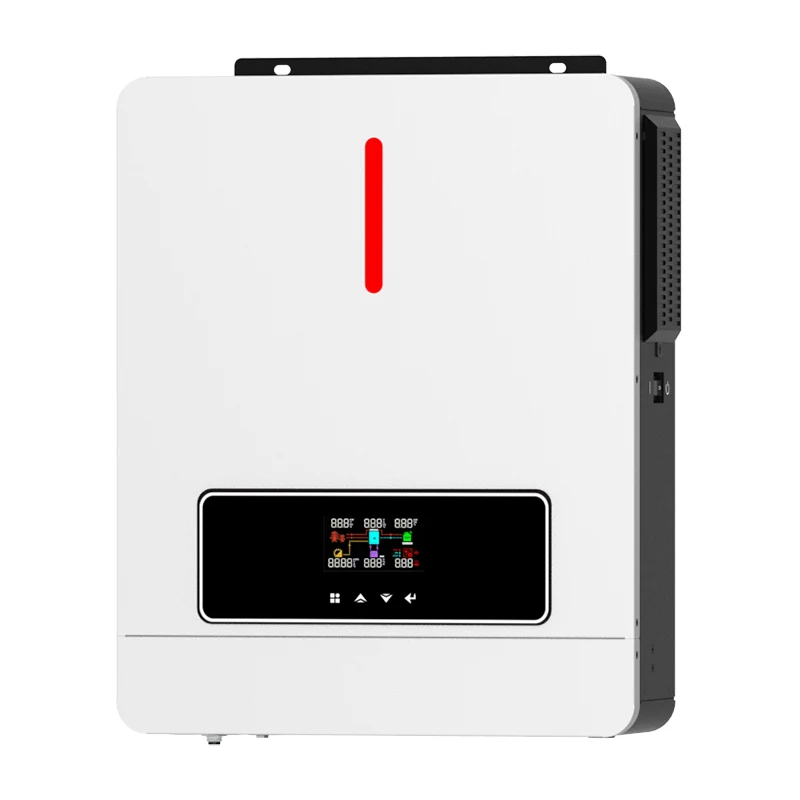

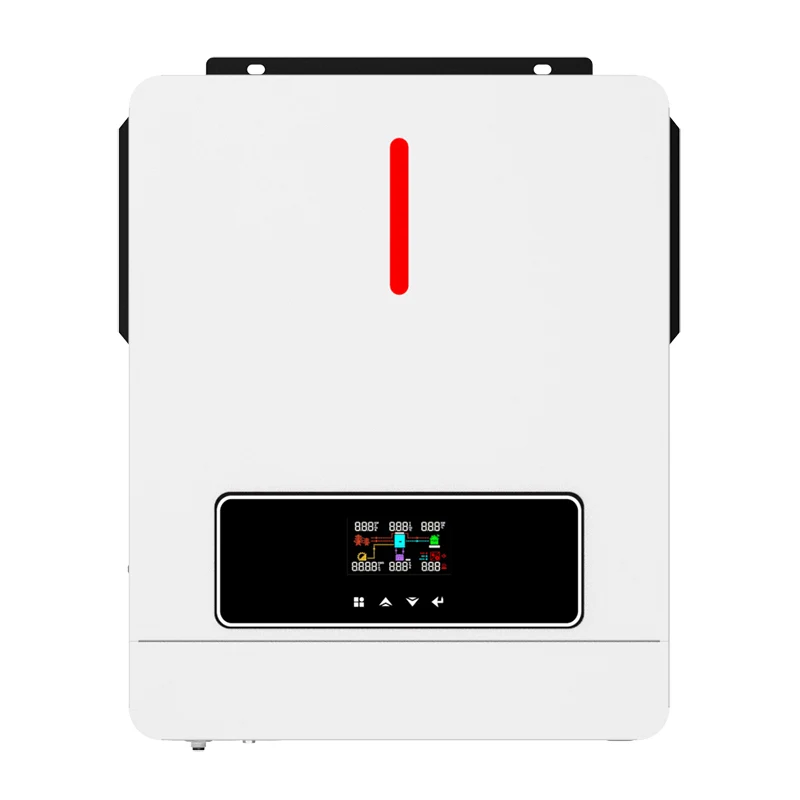

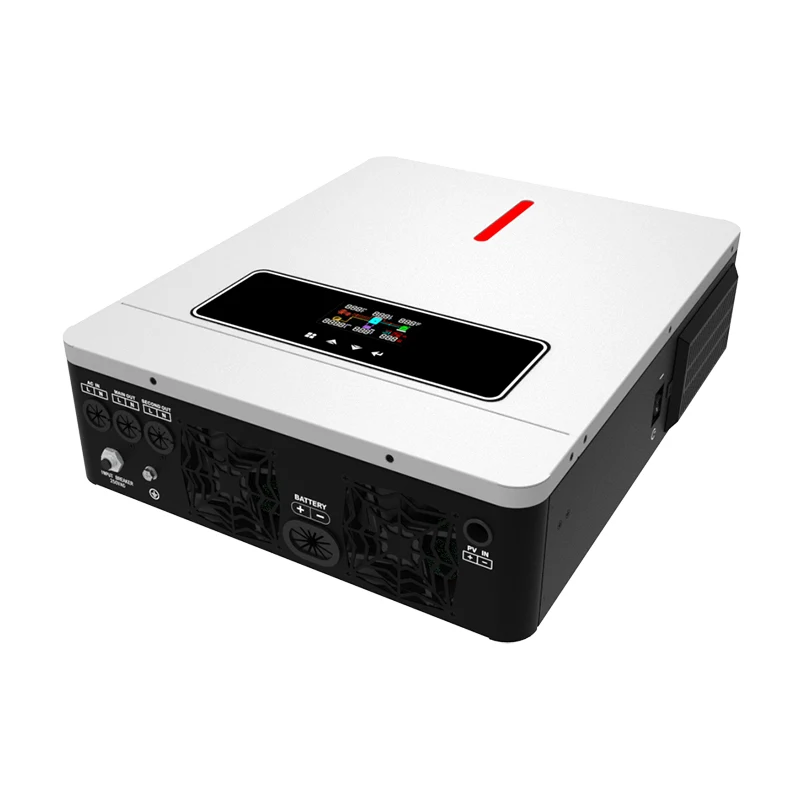

Hybrid Inverter
Aluassy, a reputable manufacturer in China, is willing to offer you Hybrid Inverter. We promise to provide you with the best after-sale support and prompt delivery.
Send Inquiry
Product Description
Aluassy, a reputable manufacturer in China, is willing to offer you Hybrid Inverter. We promise to provide you with the best after-sale support and prompt delivery.
Features:
Pure sine wave solar inverter(on/off Grid)
WIFI&GPRS available for IOS and Android
Inverter running without battery
One-Key restoration to factory Settings
Built-in Lithium battery automatic activation
MPPT:Max 6200W(for 3.6KW), Max 6500W(for 6.2KW )
Max 7500W (for 7.2 KW ) solar charge
High PV input voltage range(60~500VDC)
Anti-dusk kit for harsh environment
Smart battery charge design to optimize battery life
Dual output
|
MODEL |
MPS VIII ECO 3.6KW |
MPS VIII ECO 6.2KW |
MPS VIII ECO 7.2KW |
|
Phase |
1-phase |
||
|
Maximum PV Input Power |
6200W |
6500W |
7500W |
|
Rated Output Power |
3600W/3600VA |
6200W/6200VA |
7200W/7200VA |
|
Maximum Solar Charging Current |
120A |
120A |
140A |
|
GRID-TIE OPERATION |
|||
|
PV Input(DC) |
|||
|
Nominal DC Voltage/ Maximum DC Voltage |
360VDC/500VDC |
||
|
Start-up Voltage/ Initial Feeding Voltage |
90VDC/120VDC |
||
|
MPPT Voltage Range |
60VDC~500VDC |
||
|
Number of MPPT Trackers/Maximum Input Current |
1/27A |
||
|
GRID OUTPUT(AC) |
|||
|
Nominal Output Voltage |
220/230/240VAC |
||
|
Output Voltage Range |
195.5~253VAC |
||
|
Nominal Output Current |
15.7A |
27.0A |
31.3A |
|
Power Factor |
>0.99 |
||
|
Feed-in Grid Frequency Range |
49~51±1Hz |
||
|
EFFICIENCY |
|||
|
Maximum Conversion Efficiency(DC/AC) |
98% |
||
|
TWO LOAD OUTPUT POWER |
|||
|
Full Load |
3600W |
6200W |
7200W |
|
Maximum Main Load |
3600W |
6200W |
7200W |
|
Maximum Second Load(battery mode) |
1200W |
2067W |
2400W |
|
Main Load Cut Off Voltage |
22VDC |
44VDC |
44VDC |
|
Main Load Return Voltage |
26VDC |
52VDC |
52VDC |
|
OFF-GRID OPERATION |
|||
|
AC INPUT |
|||
|
AC Start-up Voltage/ Auto Restart Voltage |
120-140VAC/180VAC |
||
|
Acceptable Input Voltage Range |
90-280VAC or 170-280VAC |
||
|
Maximum AC Input Current |
40A |
40A |
50A |
|
Nominal operating frequency |
50/60Hz |
||
|
Surge power |
7200W |
12400W |
14400W |
|
BATTERY MODE OUTPUT(AC) |
|||
|
Nominal Output Voltage |
220/230/240VAC |
||
|
Output Waveform |
Pure sine wave |
||
|
Efficiency(DC to AC) |
94% |
||
|
BATTERY & CHARGER |
|||
|
Nominal DC Voltage |
24VDC |
48VDC |
48VDC |
|
Maximum Solar Charging Current |
120A |
120A |
140A |
|
Maximum AC Charging Current |
100A |
100A |
100A |
|
GENERAL |
|||
|
PHYSICAL |
|||
